The F100 fire panel and components which comply with NZS 4512:2021, and meets the requirements of the New Zealand Building Code.

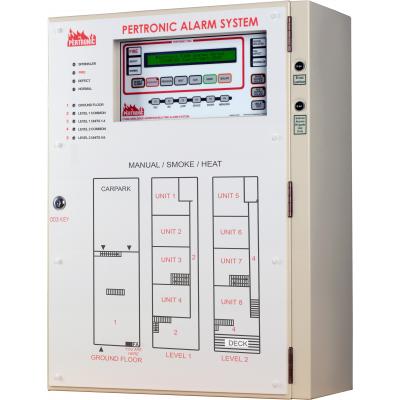

The F100 analogue addressable panel is a fire alarm control panel for installations that require flexible configuration and control functions.

As part of of NZS 4512:2021 the F100 panel meets the requirements for seismic testing and earthquake loading.

Features

• Precise Identification of Fire Location with user-definable English language text description
• Large 2 x 40 character back-lit LCD Display
• 24-character configurable text message per Address, Zone, Logic Block, Timer and Network input
• Automatic ‘Pre-Alarm’ warnings
• Automatic 24-Hour ‘System Test’ of all Detectors and Battery
• 2 to 4 Loops provides a maximum 396 detectors plus 396 modules or manual call points (MCPs)
• Supports up to 64 outputs to the network and 64 inputs from the network
• Loop input devices include detectors, call-points, loop responders, loop relays, and modules
• Addressable loop relays can be configured as Sounder relays, Auxiliary relays or Door Holder relays, etc
• User Isolation of zones and individual detectors
• 2560 Event Historical Log
• Configuration data may be entered through the front panel controls or using PC Configuration Utility
• FPANZ listing: PI/130 (pending)

---
