Six-Way Relay Output Module (Supervised)

Product Overview

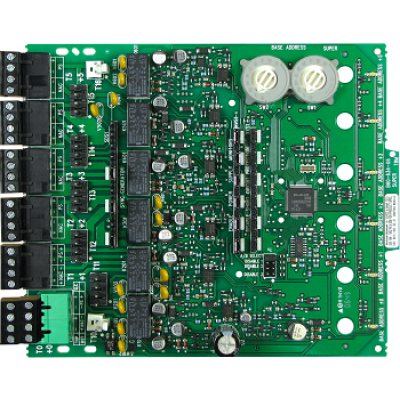

The Six-Way Supervised Relay Output Module (SC-6) provides six supervised relay circuits for switching AC, DC, or audio. The module connects to a Pertronic analogue addressable fire alarm control panel via the AA loop.

Each relay output may be fed from a separate external source, independent of any other output.

Each output has a green LED indicator controlled by the fire alarm control panel.

Each output on the SC-6 has its own loop address. The first output's address may be configured to any value from 01 to 94, using rotary switches on the module. The other five relay outputs are automatically assigned to the next five higher addresses.

Up to three unused outputs may be disabled. This allows the unused addresses to be used for other equipment connected to the analogue addressable loop.

Features

  • Individual LED indicators
  • Rotary address switches
  • Unused addresses may be disabled
  • Plug-in terminal blocks to suit 12 to 18 AWG
  • Mounting hardware included
