Indicating Heat Detector c/w Remote

Product Overview

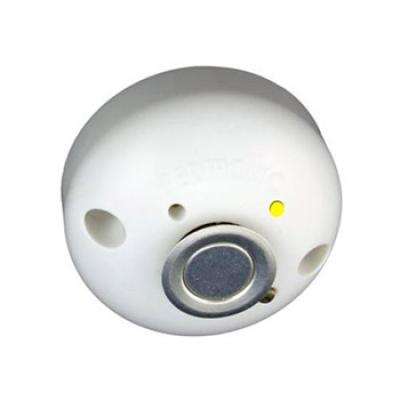

The Pertronic Indicating Heat Detector is an NZS 4512:2010-compliant fixed (static) temperature heat detector with remote LED output terminals.

Two versions are available: 57 °C temperature threshold (blue dot), and 77 °C temperature threshold (yellow dot).

Features

  • Fast response, fixed temperature heat detector
  • Protected against false activation caused by vibration or other transient impulses
  • Fully complies with NZS 4512:2010
  • Terminals accept up to 1.5 mm² cable
  • Bi-directional circuit connection terminals: Either of the ‘Red’ terminals may be connected to the fire panel
  • Vertically mounted PCB with protective cover for improved resistance against condensation and water damage
  • Red LED indication:
    • The LED latches ON when the thermo-mechanical sensor element activates
    • De-powering the heat detector resets the LED
  • Alarm condition clamps the circuit voltage to 2.2 V
  • Integral reverse polarity yellow LED for easy detection of wiring faults
  • Reverse polarity connection causes “Hi Defect” fault warning on Pertronic panels
  • The Remote LED (DETREM) is compatible with System Sensor detector remote outputs

Availability

Product Code Description
IHDBR-V Indicating Heat Detector, Blue c/w Remote O/P, 57 °C
IHDYR-V Indicating Heat Detector, Yellow c/w Remote O/P, 77 °C
