EVAC Tone Generator

Product Overview

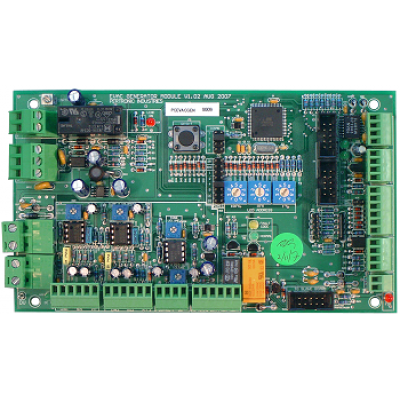

The Pertronic Evacuate Generator Module extends the F100A and F120A analogue addressable automatic fire alarm system by allowing a fully monitored interface between the control panel and a third party 100 Vrms amplifier. The Evacuate Generator Module connects to a Pertronic F100A or F120A using four wire RS485 or directly via a monitored bell circuit. It has four selectable inputs, each of which can be programmed to produce different tones when activated. Two of the tones may include a voice message.

Features

  • Dual microphone / line inputs, with individual volume control and Press to Talk (PTT)
  • Tone and line output volume controls
  • Optional tone selection
  • Four pull down control inputs
  • Bell circuit input and output connections
  • Closed loop Amplifier monitoring 100 Vrms 250 Watt switching capability
  • 42 tone / voice combinations available
  • 2 voice messages available
  • Configurable on site without tools
  • Monitored Fire Panel input
  • External Fault Input
  • Active and Fault relay outputs

Tones

Tone 01 Evacuation Tone with Voice Tone 25 660 Hz 1.5s on, 1.8s off - intermittent
Tone 02 Evacuation Tone Tone 26 1.4 kHz - 1.6 kHz 2 Hz
Tone 03 Alert Tone with Voice Tone 27 660 Hz - continuous
Tone 04 Alert Tone Tone 28 544 Hz / 440 Hz - alternating
Tone 05 T3 Cadence with Voice Tone 29 544 @ 0.875s - intermittent
Tone 06 T3 Cadence Tone 30 800 Hz @ 2 Hz - intermittent
Tone 07 Simulated Bell Tone Tone 31 800 / 1000 Hz @ 25 Hz - sweeping
Tone 08 PA400 Tone Tone 32 2400 / 2900 @ 25 Hz - sweeping
Tone 09 Claxon (star trek) Tone 33 554 Hz - continuous
Tone 10 400 - 700 Hz 1.5 sec whoop Tone 34 440 Hz - continuous
Tone 11 800 / 100 Hz @ 1 Hz sweeping Tone 35 800 / 100 Hz @ 7 Hz - sweeping
Tone 12 400 / 450 Hz @ 0.5 Hz tone Tone 36 660 / 1200 Hz @ 1 Hz - sweeping
Tone 13 2400 / 2900 Hz 7 Hz - sweeping Tone 37 2 Tone Chime 1000 / 650 Hz
Tone 14 2400 / 2900 Hz 1 Hz - sweeping Tone 38 745 Hz @ 1 Hz - intermittent
Tone 15 500 / 1200 Hz @ 1 Hz - sweeping Tone 39 1000 & 2000 Hz @ 0.5s alternating
Tone 16 1200 / 500 Hz @ 1 Hz - DIN / PFEER Tone 40 1000 Hz continuous - PEEER Toxix Gas
Tone 17 2400 / 2900 Hz @ 2 Hz alternating Tone 41 2000 Hz - continuous
Tone 18 1000 Hz @ 1 Hz - intermittent Tone 42 1200 Hz - continuous
Tone 19 800 / 1000 Hz @ 0.875 Hz - alternating Tone 43 800 Hz / 1000 Hz @ 4 HZ alternating
Tone 20 2400 Hz @ 1 Hz intermittent Tone 44 RH3 Tone 500 Hz – 1400 Hz @ 5 Hz repetition
Tone 21 800 Hz 0.25s on, 1s off - intermittent Tone 45 'SOS' in Morse code
Tone 22 800 Hz - Continuous Tone 46 T3 Cadence without Voice
Tone 23 660 Hz 150 mS on / off - intermittent Tone 47 500 Hz - 1200 Hz @ 186.66 Hz / Sec
Tone 24 544 (100 mS) / 440 Hz (400 mS) - NF S 32-001 Tone 48 590 Hz - Continuous
