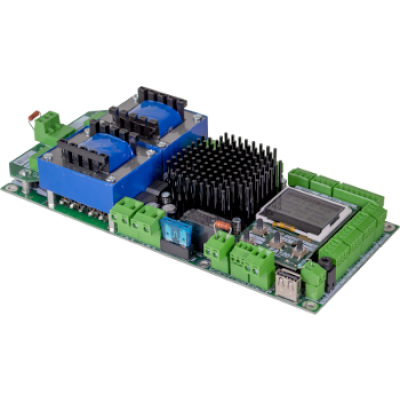

The Pertronic EA120 amplifier is a high performance amplifier for the Pertronic F220 fire alarm system.

With excellent sound clarity, this amplifier is suitable for all non-emergency and emergency applications including occupant warning, public address, and background music.

The on-board keyboard and LCD display provide speaker load measurement and other menu-driven test and management features, together with user-friendly configuration of operating settings, announcements, and signals. Configuration files can be saved and loaded via USB, allowing a single configuration file to be copied to multiple amplifiers.

The built-in audible signal generator produces signals and announcements for many purposes including the evacuation and alert signals specified in AS 4428.16. The Pertronic Text to Speech tool makes it easy to create pre-recorded natural speech messages for the EA series amplifiers.

These amplifiers feature three audio inputs suitable for local and/or remote microphones and external audio sources including background music. With a large number of easily configurable options, Pertronic EA series amplifiers satisfy a wide range of audio system requirements.

Features

• 60 watt rms and 120 watt rms class D amplifiers with supervised 100 volt rms line output
• EA120 provides one 120 watt or dual 60 watt outputs
• Excellent sound clarity for maximum intelligibility
• Resettable country presets for AU or NZ standards
• Library of pre-defined audible signals including AS 4428.16 and NZS 4512 evac. and alert signals
• Online Pertronic Text to Speech tool economically generates pre-recorded custom speech messages
• Custom speech messages and tones may be added to the on-board library via USB stick
• User-friendly system for combining speech messages and tones to create custom audible signals
• Fully configurable signal priority system
• Fire evacuation signal may be disabled or over-ridden with “Priority 1” signal
• Three individually controlled audio inputs:
• Input 1, PTT controlled, configurable as “Fire Mic”, “PA Mic”, or “Aux” input
• Input 2, PTT controlled, configurable as “Fire Mic”, “PA Mic” or “Aux” input
• Input 3, Vox controlled “Aux” input
• Inputs 1 and 2 may be independently configured with or without fault supervision » All inputs are configurable as balanced mono, unbalanced mono, or unbalanced stereo with built-in audio mixer to combine left and right stereo channels
• User-friendly configuration with on-board keyboard and 5 x 16 character backlit display
• Multiple EA series amplifiers may be factory-fitted to a single Pertronic fire panel
• Master-Repeater mode allows one master to drive up to seven repeater amplifiers
• ADM-4 interface provides up to 4 channels per line output, individually selectable by the fire panel
• Menu-controlled power measurement allows output load to be checked during installation or maintenance
• Supervised 24 V dc 2-wire strobe (VAD) output:
• Supports single or dual strobe systems
• Configurable to activate on any fire panel event
• Dual VAD colour determined by output polarity
• Assignable form C relay, configurable to activate on any combination of Common Fault, Amplifier Active, Amplifier Disabled or Isolated, Test Alarm, PTT, FIP Active, Strobe On, or Bell-In Active
• Configuration may be cloned via USB stick
• Twenty-event time-stamped history log
• Isolated RS-485 interface to Pertronic F220 or F100A
• Compatible with Pertronic F220, F100A, F16e, F120A and third party fire panels
• The EA60 can be configured as a replacement for the Pertronic EVAC50W24V
• EA60, EA120, and EAMIC, have been independently tested to AS 4428.16:2020 (Grade 3) and NZS 4512:2021 by an IANZ-Accredited laboratory
